解剖速記 | 眼球肌肉

Shen
Oct 15, 2021

--

眼球的肌肉分為眼外肌七條和眼內肌三條。

先看七條眼外肌,先記上下內外四條直肌,也就是 superior rectus(上直)、inferior rectus(下直)、medial rectus(內直)、lateral rectus(外直),再記上下兩條斜肌,superior oblique(上斜)、inferior oblique(下斜),最後加上一條 levator palpebrae superioris(提上眼瞼肌)就完成了。

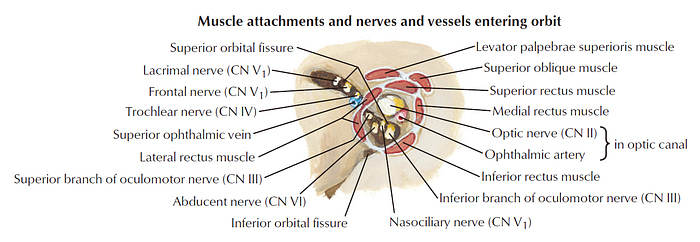

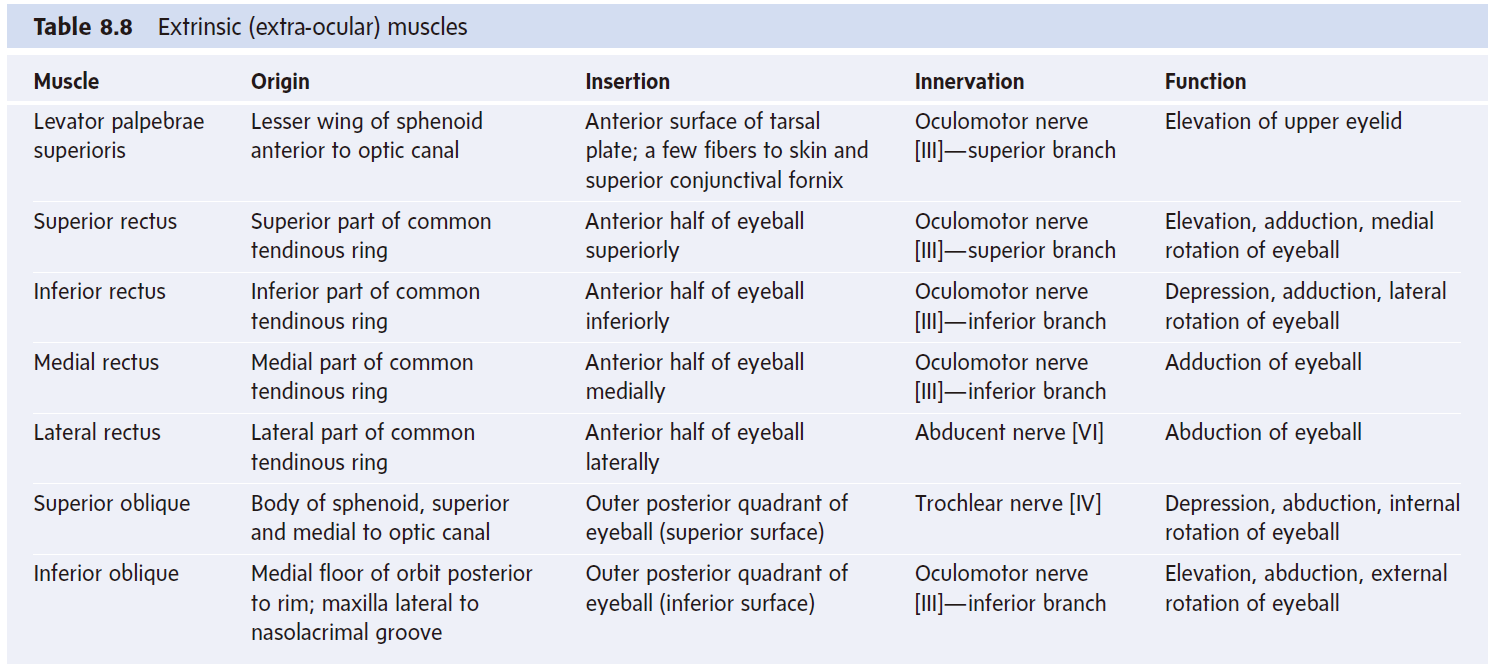

記完名字只是第一步,接下來記起止點。四條直肌的起點都在 common tendinous ring(總腱環) 上,levator palpebrae superioris 接在 lesser wing 上,superior oblique 接在 sphenoid bone 的 body 上,inferior oblique 最特別,接在眼框邊緣的內側。

止點的話 levator palpebrae 接到 anterior surface of tarsal plate,superior oblique 接到眼球後半的上方,inferior oblique 接到眼球外側的後方。

神經支配先記 superior oblique 是 trochlear nerve [IV],lateral rectus 是 abducent nerve [VI],其他都是 oculomotor [III] 就好了。

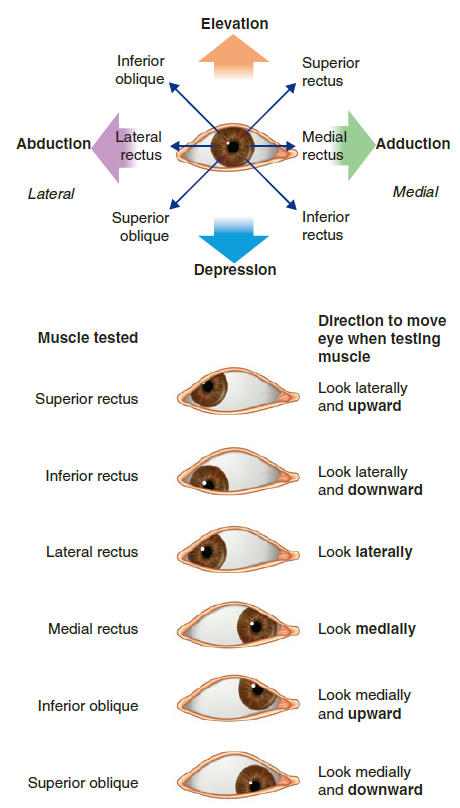

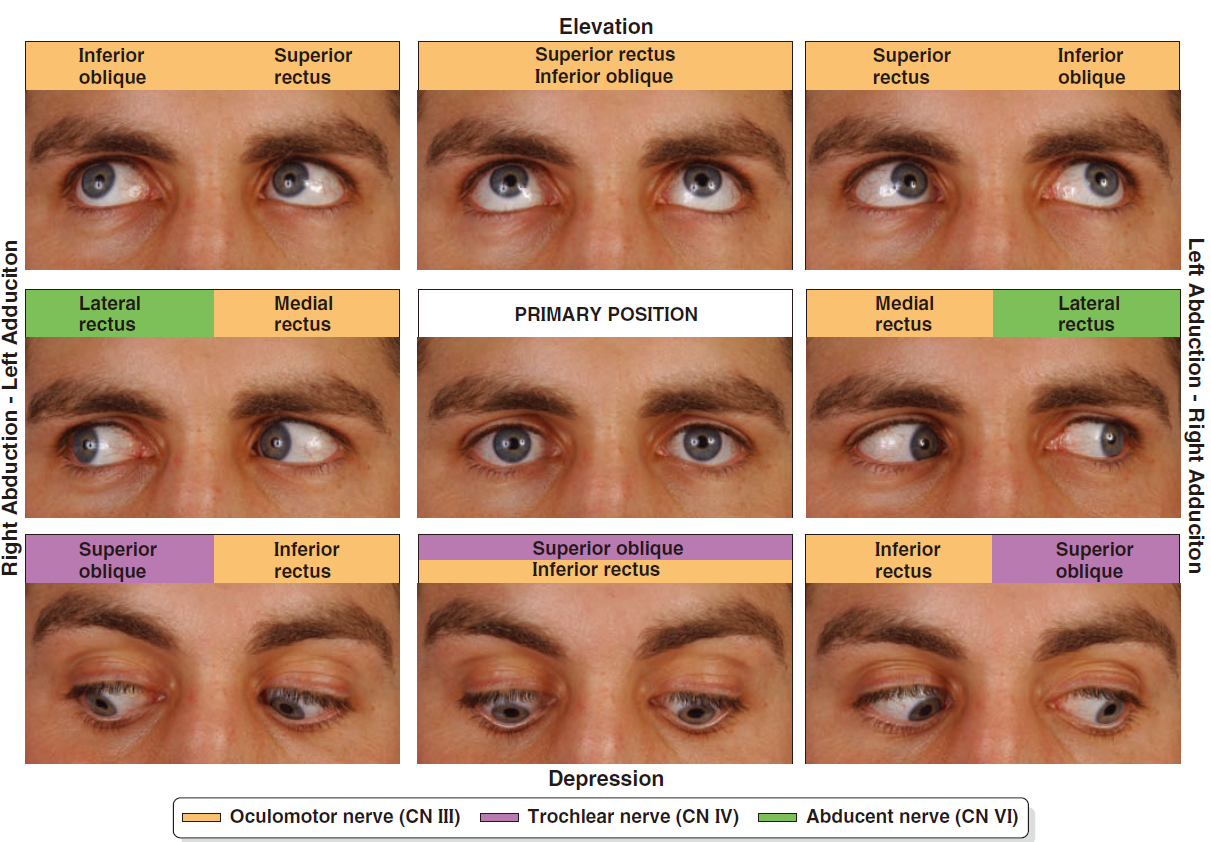

最後也要記得是眼球的運動,用下面這兩張圖去記應該夠了吧。

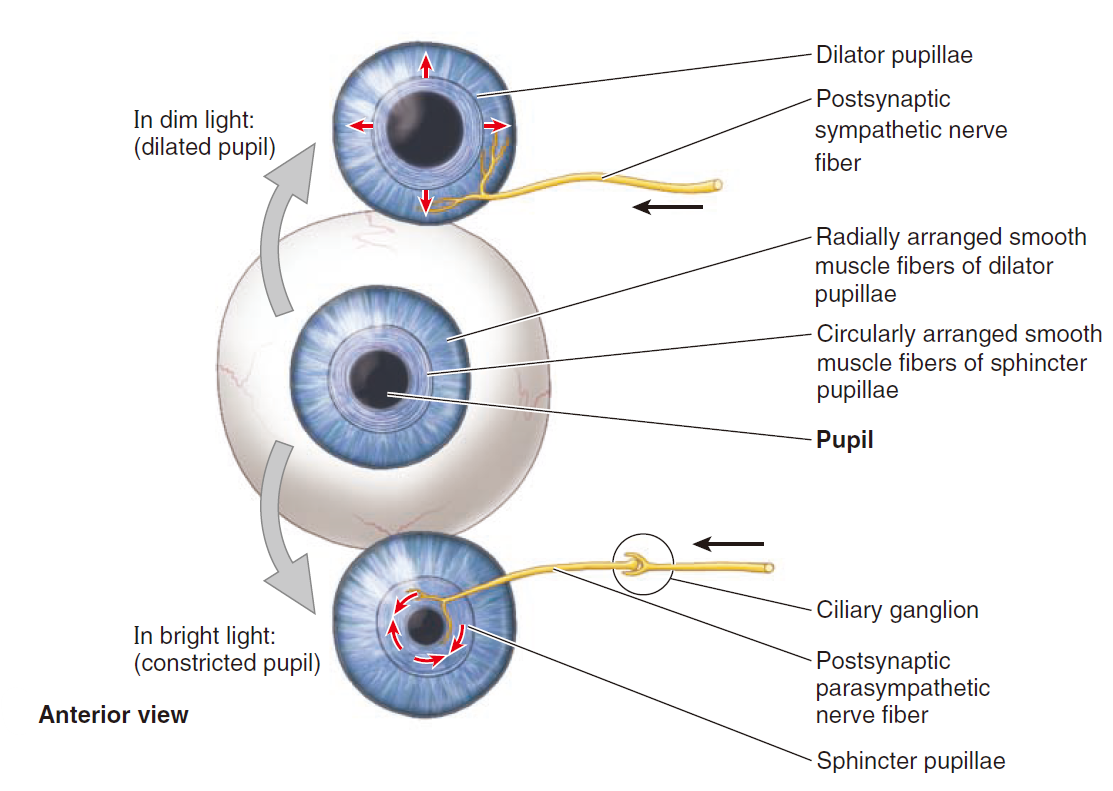

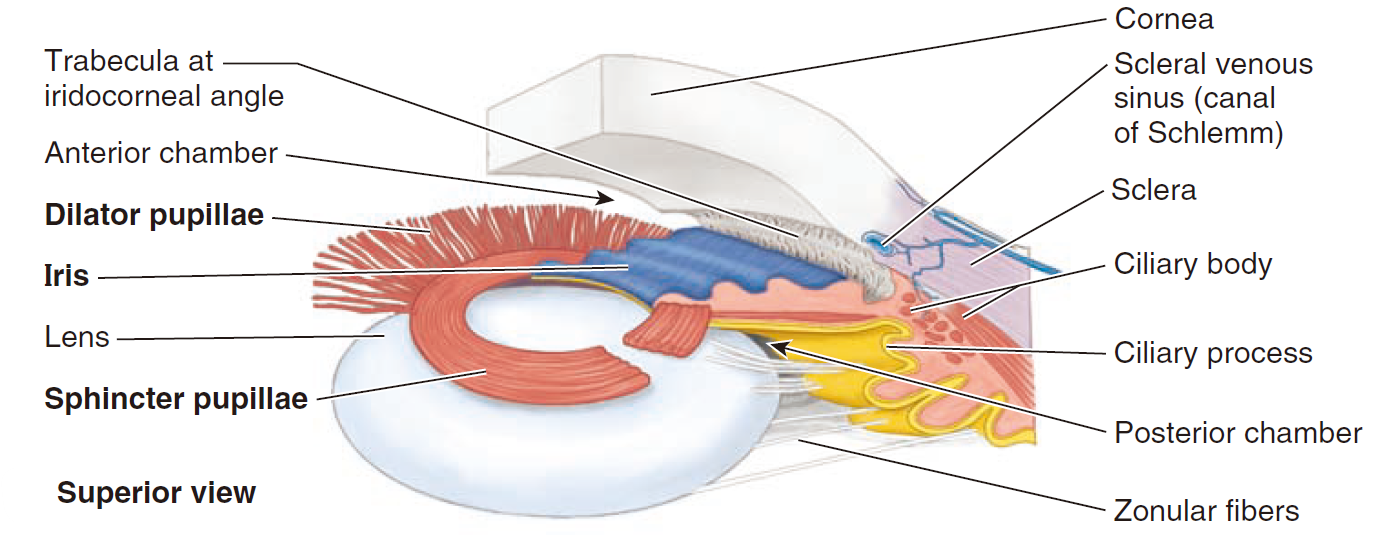

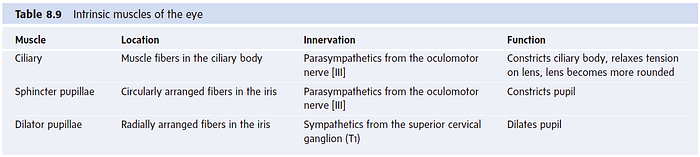

先看控制 pupil(瞳孔)的兩塊:sphincter pupillae(瞳孔括約肌)負責縮緊瞳孔,由來自 CN III 的副交感控制;dilator pupillae(瞳孔擴張肌)由來自 T1 (superior cervical ganglion)的交感神經控制。

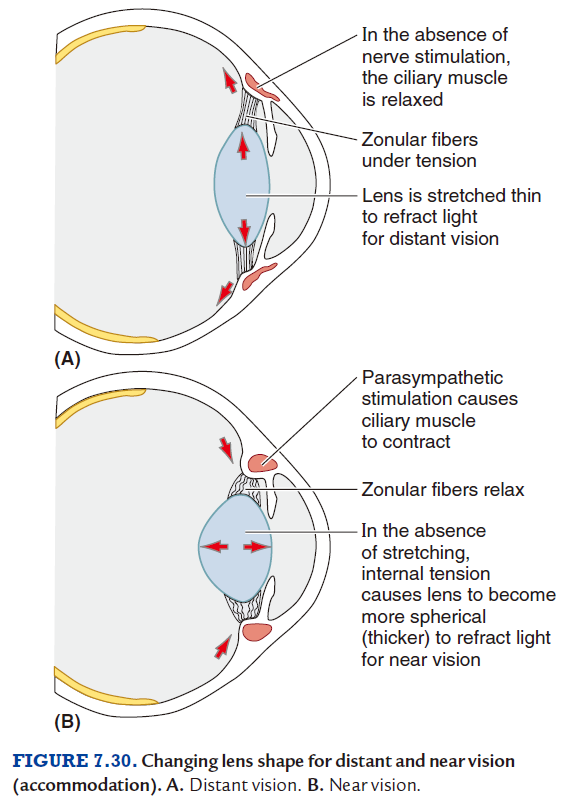

最後一塊 ciliary muscle(睫狀肌)是由 CN III 的副交感控制 lens(晶狀體)的肌肉。收縮時會使 zonular fiber 放鬆,從而使晶狀體更厚,看得清靜物。
